Using the OpenAI Agent Builder with Gram-hosted MCP servers

OpenAI’s Agent Builder is a visual drag-and-drop canvas for creating multi-agent workflows. Part of the OpenAI AgentKit suite launched in October 2025 , Agent Builder lets you design workflows visually, connect to external tools via MCP servers, and deploy them without writing code.

Screenshot of multi-agent workflow with If/else routing

When combined with Gram-hosted MCP servers, Agent Builder gives your agents safe, authenticated access to your APIs and tools through visual workflows.

This guide shows you how to build a visual workflow in Agent Builder using a Gram-hosted MCP server for Taskmaster, a full-stack CRUD application for task and project management. Taskmaster includes a web UI for managing projects and tasks, a built-in HTTP API, OAuth 2.0 authentication, and a Neon PostgreSQL database for storing data. Try the demo app  to see it in action.

You’ll learn how to build a visual workflow, connect it to your Gram MCP server, and deploy it using ChatKit or the Agents SDK.

Find the full code and OpenAPI document in the Taskmaster repository .

The AgentKit ecosystem

OpenAI introduced AgentKit as a complete toolkit for building, deploying, and optimizing AI agents. Understanding the different components helps clarify the sometimes confusing terminology.

AgentKit components

AgentKit is the umbrella term for OpenAI’s complete agent development platform, which includes:

  • Agent Builder: A visual canvas for creating and versioning multi-agent workflows with drag-and-drop nodes, MCP connections, and custom guardrails. Currently in beta. (The focus of this guide.)
  • ChatKit: A toolkit for embedding customizable chat-based agent experiences in your product. Generally available to all developers.
  • Connector Registry: A central registry that consolidates data sources into a single admin panel across ChatGPT and the API, including prebuilt connectors like Dropbox, Google Drive, SharePoint, and Microsoft Teams, as well as third-party MCP servers. Beginning beta rollout to Enterprise customers.
  • Enhanced Evaluations: Tools for trace grading, dataset testing, and automated prompt optimization. Generally available to all developers.

How Agent Builder differs from other OpenAI tools

The OpenAI Agents SDK is a Python framework for building agents programmatically with code. Use it when you need full programmatic control, complex logic, or want to embed agents in existing applications.

ChatGPT Developer Mode adds custom MCP connectors directly to ChatGPT’s web interface for end-user interactions. Use it when you want to give ChatGPT access to your tools without building custom workflows.

Agent Builder is for building multi-step agent workflows without code. Use this when you want to create complex workflows visually, chain multiple agents together, or quickly prototype agent behaviors. You then deploy the workflow via ChatKit or download the SDK code.

Agent Builder nodes

In Agent Builder, you compose workflows by inserting and connecting nodes. Each connection between nodes becomes a typed edge. Agent Builder provides several node types.

Core nodes provide the basic functionality used in most workflows:

  • Start nodes define workflow inputs.
  • Agent nodes configure agent instructions, tools, and model settings.
  • Note nodes add comments and explanations (but don’t affect execution).

Tool nodes add tools and external services to agent workflows:

  • File search nodes retrieve data from OpenAI vector stores.
  • Guardrails nodes add safety checks for PII, jailbreaks, hallucinations, and content moderation.
  • MCP nodes call third-party tools and services via MCP servers.

Logic nodes insert custom logic and workflow controls:

  • If/else nodes add conditional branching using Common Expression Language (CEL).
  • While nodes loop on custom conditions.

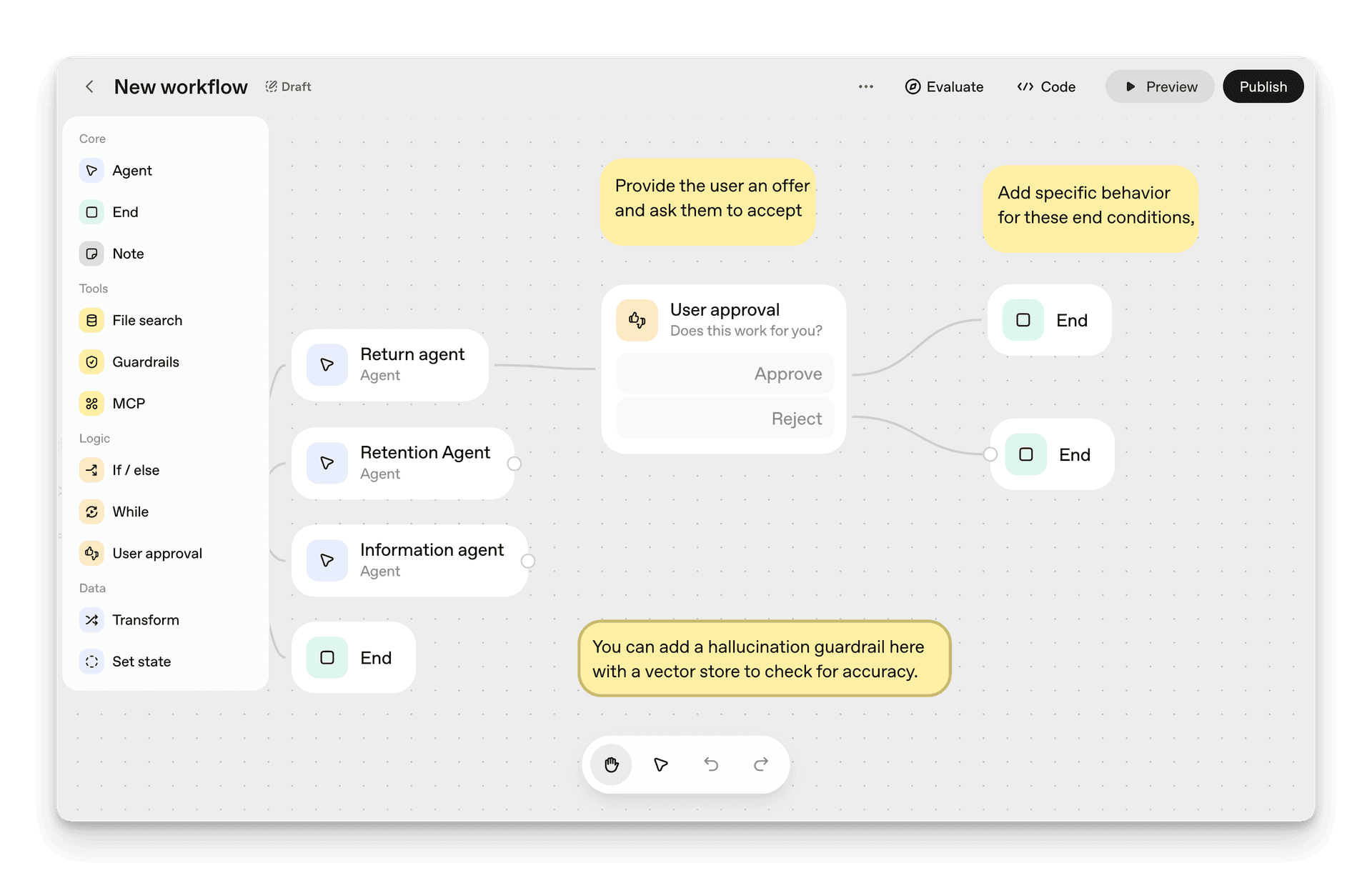

  • Human approval nodes defer to end-users for approval before continuing.

Data nodes define and manipulate data within workflows:

  • Transform nodes reshape outputs (for example, object → array).
  • Set state nodes define global variables for use across the workflow.

See the Node reference documentation  for complete details on all available nodes.

The Agent Builder workflow

This guide walks you through Agent Builder’s three-step process for creating and deploying agent workflows.

  • Design your workflow: Use the visual canvas to compose agents and add nodes for external tools, configuring guardrails, and defining control flow logic.
  • Publish your workflow: Create a versioned snapshot with a workflow ID.
  • Deploy your workflow: Either embed it in your app using ChatKit (recommended) or download the Agents SDK code to run it yourself.

Prerequisites

To follow the tutorial, you need:

:::note[Agent Builder Beta Access] Agent Builder is currently in beta. If you don’t have access yet, you can request access through the OpenAI platform .

Note on documentation: This guide describes the general workflow based on the official OpenAI documentation . Since Agent Builder is in active beta development, some UI details may evolve. Refer to the official docs for the most current information.

While waiting for access, consider using the OpenAI Agents SDK or ChatGPT Developer Mode to integrate with Gram MCP servers. :::

Create a Taskmaster MCP server

Before you can use a Taskmaster MCP server to create workflows in Agent Builder, you first need to create one.

Follow the guide to creating a Taskmaster MCP server, which walks you through:

  • Setting up a Gram project with the Taskmaster OpenAPI document
  • Getting a Taskmaster API key from your instance
  • Configuring environment variables
  • Publishing your MCP server with the correct authentication headers

Build your workflow in Agent Builder

Once you’ve configured the Taskmaster MCP server, you can access Agent Builder and start creating your workflow.

Access Agent Builder

Log in to the OpenAI Platform  and navigate to Agent Builder .

Create a new workflow

Click + Create or Open Agent Builder to start a new workflow. You can start from a template or from a blank canvas.

Agent Builder provides templates for common workflow patterns, like customer service automation, homework helpers, and Q&A agents. For this tutorial, we’ll start from a blank canvas.

Every workflow begins with a Start node, which defines inputs to your workflow. For chat workflows, the Start node appends user input to conversation history and exposes it as input_as_text.

Screenshot of Agent Builder interface showing node palette and canvas

Add an Agent node

  • From the node palette on the left, drag an Agent node onto the canvas.

  • Connect the Start node to the Agent node by dragging from the Start node’s output.

  • Click on the Agent node to configure it, filling in the fields as follows:

    • Name: Task Manager
    • Instructions: You help users manage their tasks and projects using Taskmaster. Be helpful and conversational. When creating tasks, always confirm the details with the user.
    • Model: Select gpt-5 or your preferred model

Keep each agent’s scope well defined. You can have multiple agent nodes in a workflow, each specialized for different tasks.

Add MCP tools to your Agent

Instead of adding a separate MCP node, you add MCP tools directly to your Agent node. This is how Agent Builder connects to external MCP servers:

  • Click on your Agent node to open its configuration panel.
  • Scroll down to the Tools section.
  • Click the + button to add a tool.
  • Select MCP server from the dropdown menu (under Hosted).

Screenshot showing tool options in Agent node

This opens the Add MCP Server dialog, where you’ll configure your Gram-hosted Taskmaster MCP server connection.

Configure the MCP server connection

In the Add MCP Server dialog, click + Server and fill in your Taskmaster MCP server details:

  • URL: Enter your Gram Hosted URL (for example, https://app.getgram.ai/mcp/your-taskmaster-slug).
  • Label: Add a unique identifier for this MCP connection (for example, taskmaster_mcp).
  • Description: Provide a brief description of what the MCP server does (for example, A Todo app).
  • Authentication: Select Custom headers from the dropdown.
    • For Pass-through Authentication, add the header, TASKMASTER_API_KEY, with your Taskmaster API key.
    • For Managed Authentication, add the header, Authorization, with the value, Bearer YOUR_GRAM_API_KEY.
    • Click + Header if you need to add additional headers.

:::note[Authentication headers] The exact authentication header you use depends on your Taskmaster MCP server configuration. Refer to your Taskmaster MCP server setup for the correct header name and format. Also, ensure that the MCP server’s visibility is set to public, so that it is reachable. :::

Click Connect to establish the connection.

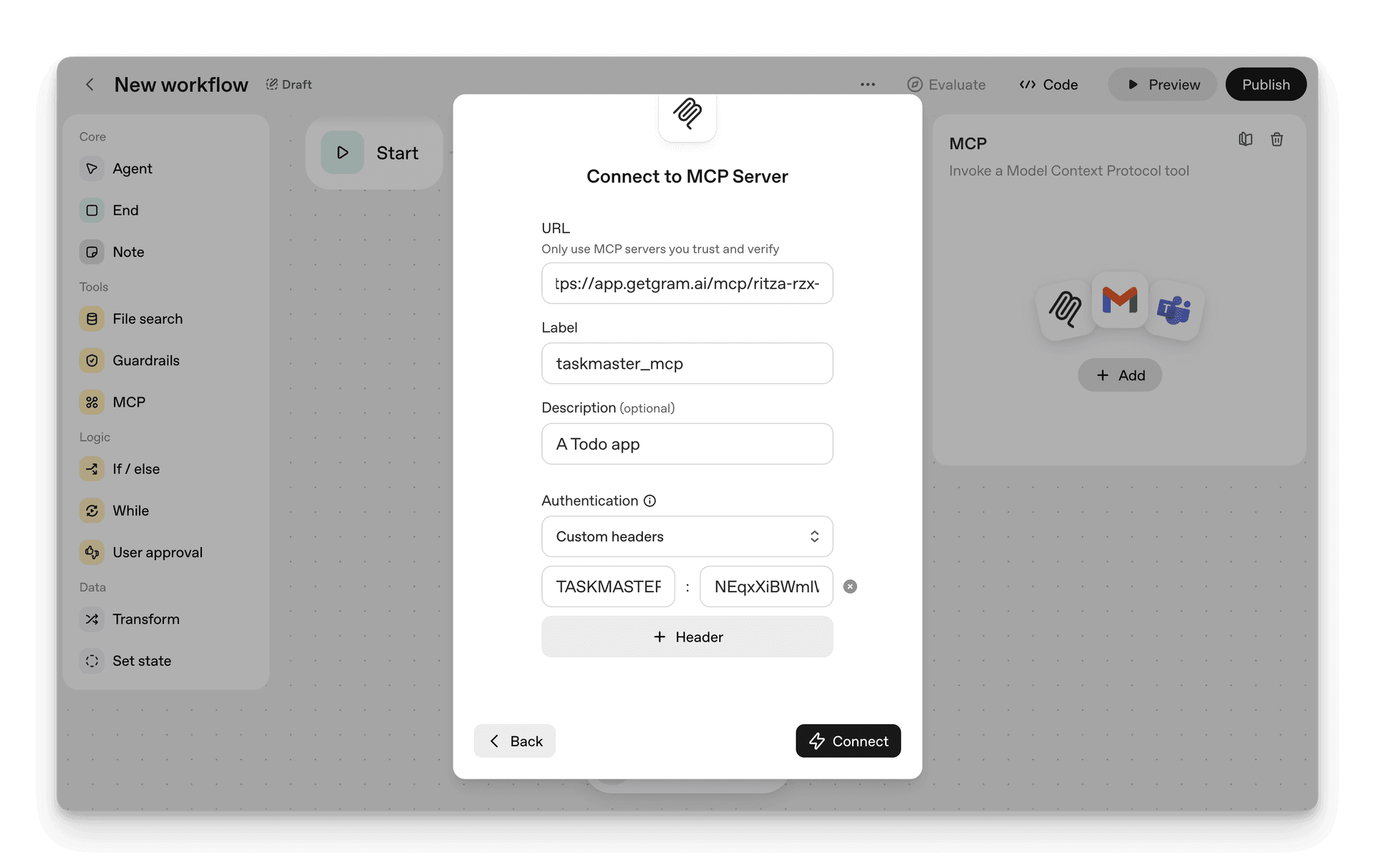

Screenshot showing the Connect to MCP Server dialog

Wait for connection

Agent Builder connects to your Gram server and fetches the available tools. This may take a few seconds:

Screenshot showing connection in progress

Select tools and configure approval

Once connected, you’ll see a list of available tools from your Taskmaster MCP server:

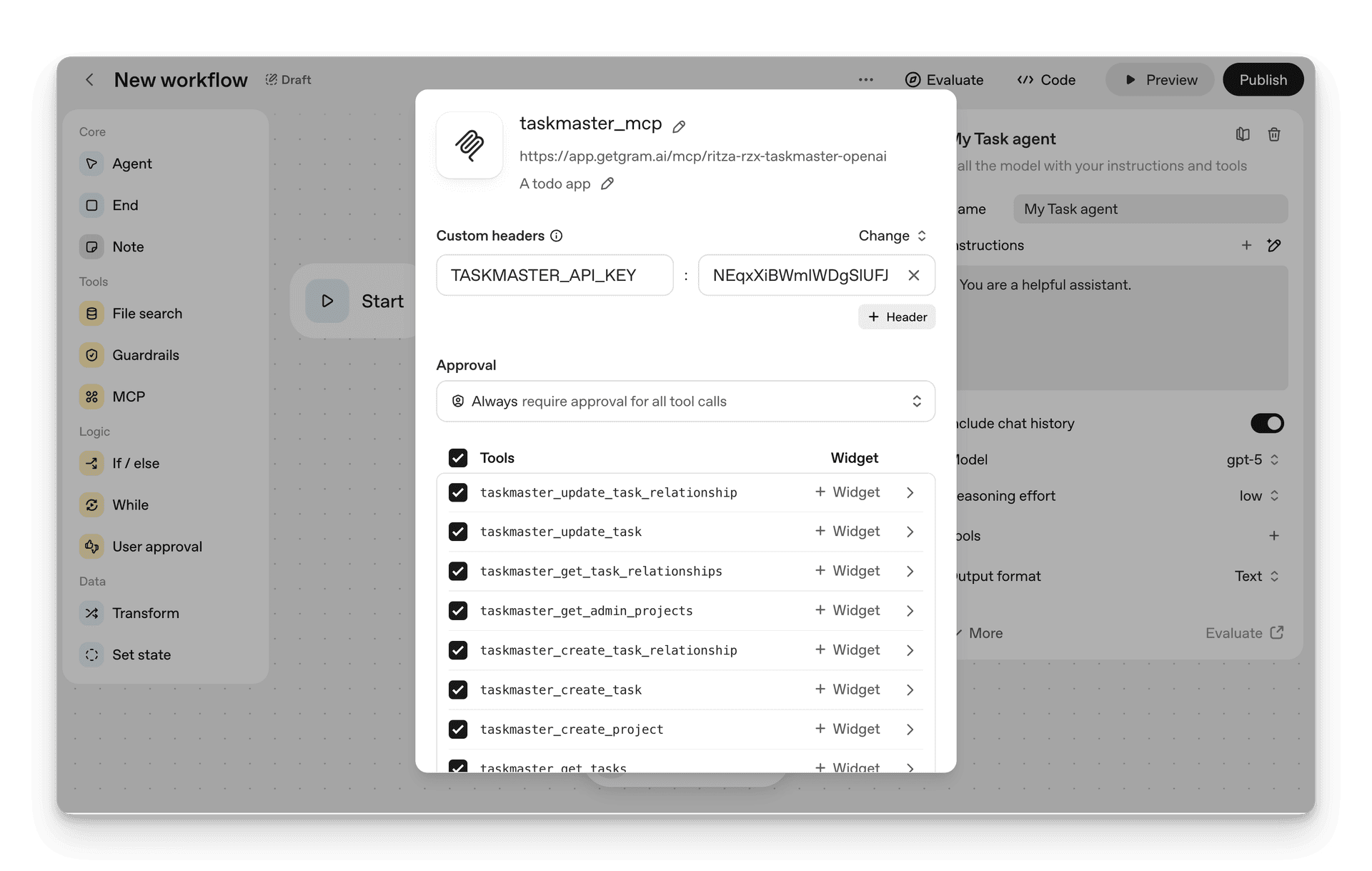

Screenshot showing available Taskmaster tools

Now, configure the following settings.

  • Custom headers: Review and confirm your authentication headers are correct
  • Approval: Choose whether tool calls need explicit approval.
    • Select Always require approval for all tool calls to require approval for every tool call (safest for testing).
    • Select Never require approval to skip approvals for all tools (recommended for trusted servers in production).
    • Use a Custom configuration to approve specific tools automatically, while requiring approval for others.
  • Tools: Select which tools to enable. By default, all tools are selected.
    • Uncheck tools you don’t want to use.
    • Click + Widget next to each tool to configure custom UI widgets (optional).

The available Taskmaster tools include:

  • taskmaster_create_task for creating a new task
  • taskmaster_create_project for creating a new project
  • taskmaster_update_task for updating an existing task
  • taskmaster_get_tasks for listing all tasks
  • taskmaster_get_admin_projects for getting projects

Click Done or close the dialog to save your MCP server configuration.

Verify that the MCP tool has been added

Back in the Agent node configuration, you should now see the MCP server listed under Tools:

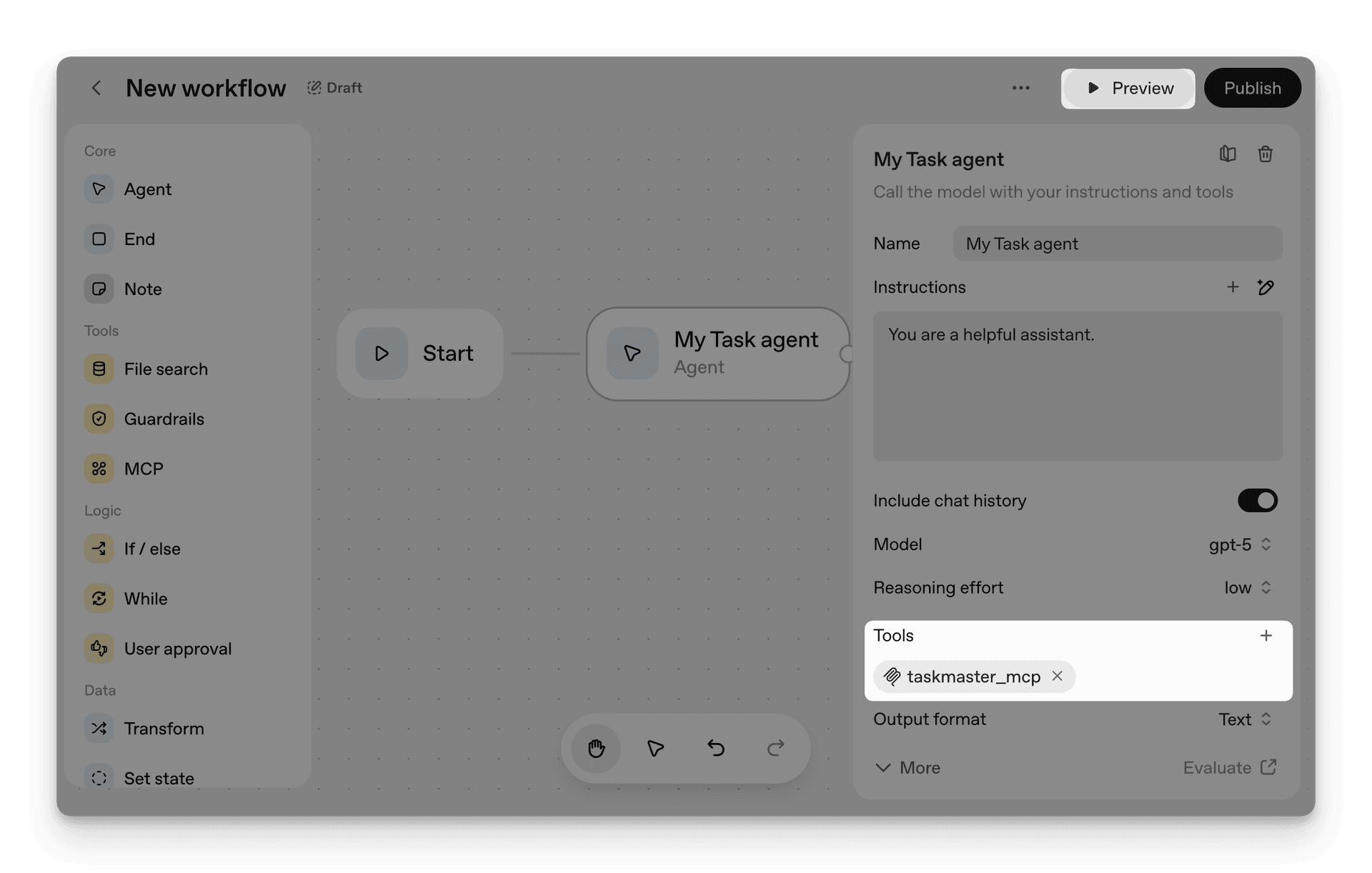

Screenshot showing MCP tool enabled in Agent

The Agent can now use all the enabled tools from your Taskmaster MCP server when responding to user requests.

:::tip[How MCP tools work in Agent Builder] When you add an MCP server to an Agent node:

  • Agent Builder fetches tool definitions from your Gram-hosted MCP server once at connection time
  • The agent can then call the tools as needed during workflow execution
  • All tool calls and responses are visible in the Preview and trace view for debugging
  • This uses the same underlying technology as the [Responses API(https://platform.openai.com/docs/guides/tools-connectors-mcp ) MCP tool] :::

Add Guardrails (optional)

For production agents, OpenAI recommends you add guardrails to protect against unwanted behavior.

  • From the node palette, drag a Guardrails node onto the canvas.
  • Connect the Guardrails node in your workflow (typically after the Agent node).
  • Click on the Guardrails node to configure the safety checks as follows:
    • Toggle Personally identifiable information on to prevent exposure of PII.
    • Toggle Moderation on to filter inappropriate content.
    • Toggle Jailbreak on to block attempts to override agent instructions.
    • Toggle Hallucination on to validate agent responses against tool outputs.
    • Toggle Continue on error based on whether you want to continue or halt the workflow if a guardrail fails.

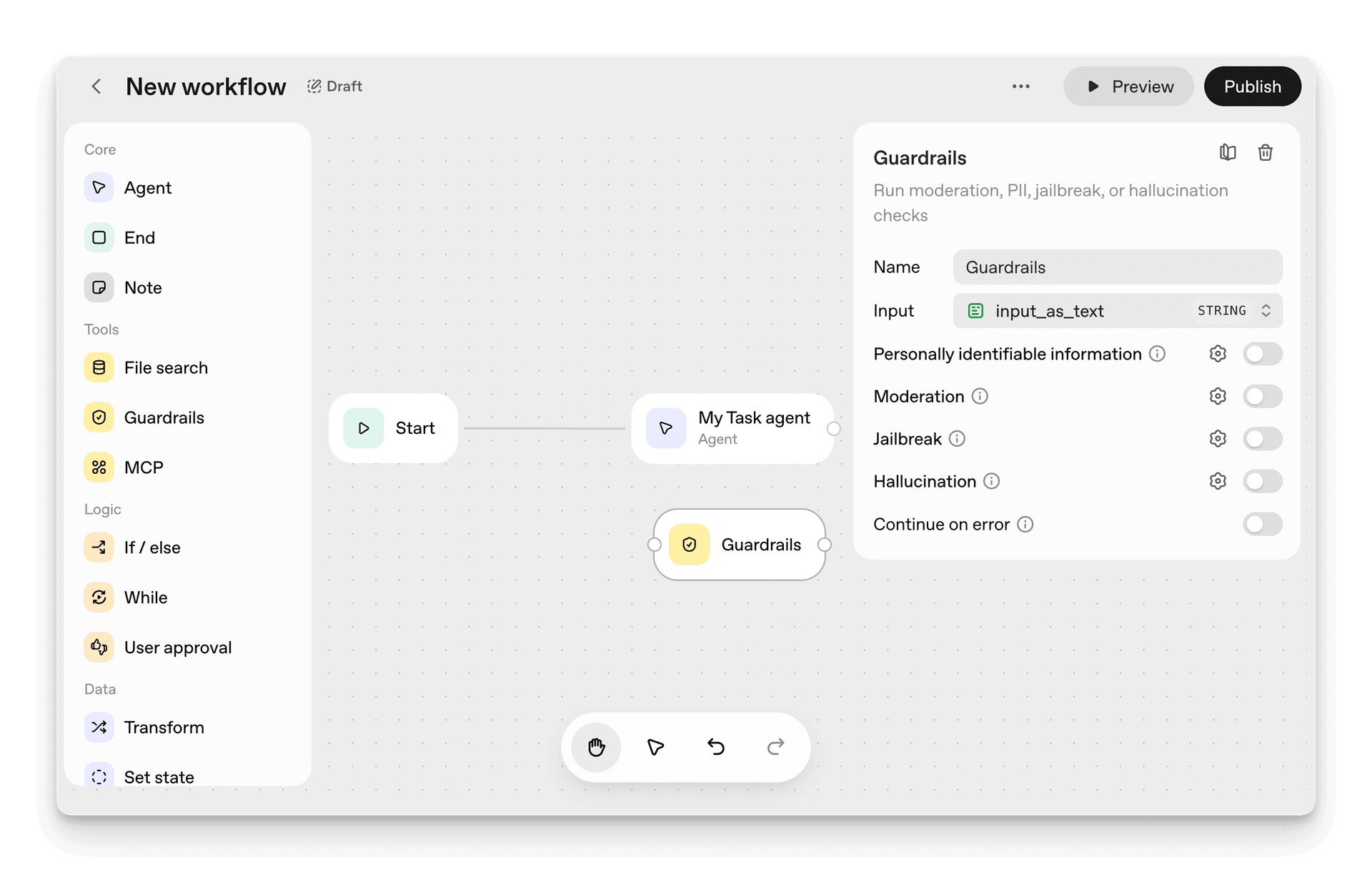

Screenshot of Guardrails node configuration

Guardrails are pass/fail by default. When a guardrail fails, you can either:

  • End the workflow (safest option)
  • Return to the previous step with a warning
  • Continue with modified output (if Continue on error is enabled)

For the Taskmaster workflow, guardrails are optional but recommended for production use.

Preview and test the workflow

Agent Builder provides a Preview feature for interactive testing.

  • Click Preview in the top navigation panel.

  • In the preview panel, enter a prompt:

    Create a new task: Review OpenAI Agent Builder documentation

  • Watch the workflow execute the prompt:

    • The Start node captures your input.
    • The Agent interprets your request.
    • The Agent has access to all Taskmaster tools from your MCP server.
    • The Agent calls the appropriate tool (for example, taskmaster_create_task).
    • The workflow returns a confirmation message.

You can observe the execution in real time, including which tools are called and what data is passed.

  • Try additional prompts to test different tools:

    What tasks do I have?
    Update my documentation task to mark it as in progress.

Here’s what the Preview interaction looks like when updating a task:

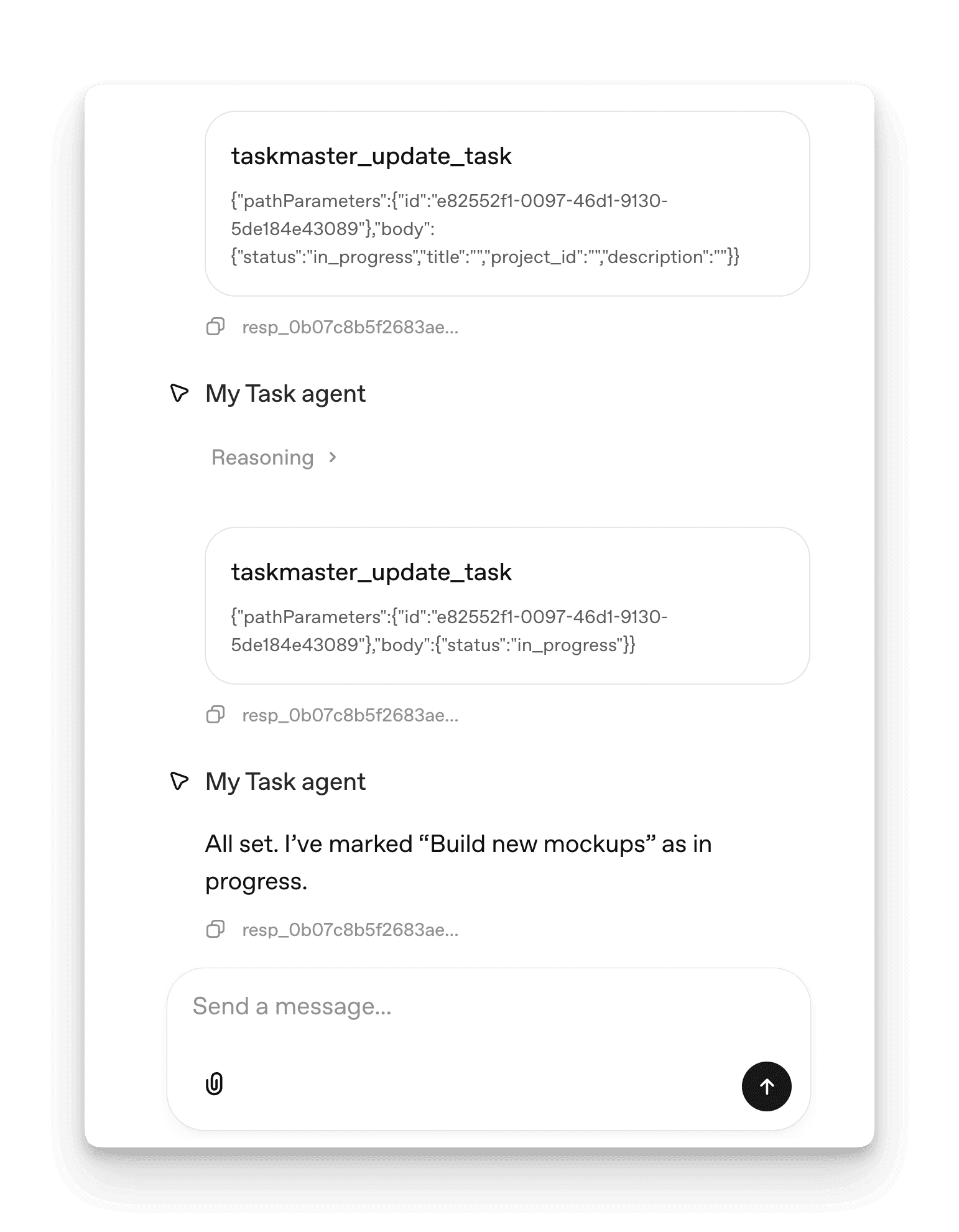

Screenshot showing task update in Preview mode

You can observe the execution of each node, inspect data flowing between them, and review trace details for debugging.

Watch the complete demo

Here’s a full demo of the Taskmaster workflow in action:

Publish your workflow

Agent Builder autosaves your work as you go, so once you’re satisfied with your workflow’s behavior, click Publish in the top navigation panel (next to the Preview button).

Publishing creates a versioned snapshot of your workflow and generates a workflow ID that looks like this: wf_68df4b13b3588190a09d19288d4610ec0df388c3983f58d1. You can create multiple versions of your workflow and use the workflow ID to specify which version to use in deployments.

Deploy your workflow

After publishing, you have two deployment options available through the Code button in Agent Builder’s top navigation panel. We recommend using ChatKit, but you can also download the SDK code for more advanced integration.

Option 1: ChatKit

ChatKit is the easiest way to deploy your Agent Builder workflow. It provides an embeddable chat UI that connects to your workflow as the backend, handling streaming responses, conversation threads, model thinking visualization, and custom widgets for displaying data and interactive elements.

Design your UI with ChatKit Studio

Before implementing ChatKit in code, you can design and customize your chat interface visually using ChatKit Studio . The ChatKit Playground  lets you choose light or dark modes, customize colors and typography, adjust message bubble styles, and set up starter prompts — all with a real-time preview.

Screenshot of ChatKit Studio showing visual customization options

You can also create custom widgets without code using the Widget Builder . Browse prebuilt templates for cards, lists, and forms, customize them to match your design, and copy the generated JSON to use in your integration. See live examples at ChatKit World .

Implementation example

  • In Agent Builder, click Code → ChatKit and copy your workflow ID.
  • Design your UI in ChatKit Studio if you want to.
  • Then, follow the ChatKit quickstart  to create a server endpoint, install the ChatKit React bindings (npm install @openai/chatkit-react), and embed the chat widget in your website or application.

Here’s a simplified example:

// Server-side: Create ChatKit session with your workflow ID
import { OpenAI } from "openai";

const openai = new OpenAI();

export async function createChatKitSession() {
  const session = await openai.chatkit.sessions.create({
    workflow: { id: "wf_YOUR_WORKFLOW_ID_HERE" },
    user: "user_device_id",
  });

  return { client_secret: session.client_secret };
}

// Client-side: Render ChatKit
import { ChatKit, useChatKit } from '@openai/chatkit-react';

export function MyChat() {
  const { control } = useChatKit({
    api: {
      async getClientSecret() {
        const res = await fetch('/api/chatkit/session', { method: 'POST' });
        const { client_secret } = await res.json();
        return client_secret;
      },
    },
  });

  return <ChatKit control={control} className="h-[600px] w-[320px]" />;
}

Your users will interact with a chat interface powered by your Agent Builder workflow, with full access to the tools from your Gram-hosted Taskmaster MCP server.

Option 2: Advanced integration

For maximum control, click Code → Agents SDK to download the generated Python or TypeScript code. This lets you run the workflow on your own infrastructure with full control over hosting, scaling, custom UI implementation, and advanced error handling.

Advanced workflow patterns

Agent Builder supports complex multi-agent workflows. The following advanced patterns demonstrate potential use cases:

Multi-agent workflows with conditional routing

You can build sophisticated workflows that use multiple specialized agents with conditional logic to route requests:

  • Create a Classification Agent that determines the type of request.
  • Add an If/else logic node to route based on the classification.
  • Create specialized agents for different domains, such as a Task Manager Agent that handles to-do operations, a Calendar Agent that manages scheduling (requires a calendar MCP server), and an Information Agent that answers questions from a knowledge base.

You can then write conditions using Common Expression Language (CEL) , and route to different agent paths based on tool call results, user input patterns, agent classifications, or data from MCP servers.

Here’s an example of a multi-agent workflow with conditional routing:

Screenshot of multi-agent workflow with If/else routing

In this workflow, user requests are classified and routed to the appropriate specialized agent based on the request type.

Integration with multiple MCP servers

You can connect multiple Gram-hosted MCP servers to create powerful cross-system agents:

  • Add multiple MCP nodes to your workflow, each configured for a different Gram-hosted MCP server.
  • Create agents that can access tools from different systems.
  • Use logic nodes to orchestrate operations across systems.

For example, if you sent the following prompt to a cross-system agent, it would use a different MCP server to handle each action:

Create a task in Taskmaster, then add a calendar event, then send a notification via Slack.

Human approval workflows

For sensitive operations, add human approval to ensure oversight before executing critical actions:

  • Add a Human approval node before critical operations, such as deleting tasks or sending emails.
  • Configure the approval prompt and timeout behavior.
  • Route the workflow differently based on when the operation is approved or rejected.

Screenshot of human approval workflow

This is useful for workflows where agents draft emails, make purchases, delete data, or perform other operations that need human oversight before execution.

Gram Playground testing

Before integrating with Agent Builder, you can test your Gram-hosted MCP server in the Gram Playground :

Screenshot of Gram Playground testing

This helps isolate issues between your MCP server configuration and Agent Builder workflows.

Troubleshooting

This section provides troubleshooting steps for the following issues:

MCP node not connecting

If an MCP node shows connection errors or fails to list tools:

  • Test your Gram-hosted MCP server in the Gram Playground to check it’s working correctly.
  • Verify that the Server URL is correct (copy it directly from Gram’s MCP tab).
  • Check that your server visibility is set to Public in Gram (or that you’ve provided correct authentication).
  • Ensure the Server URL includes the correct protocol (https://).
  • For managed authentication servers, check that your Gram API key is valid and properly formatted.

Tools not working as expected

If the agent calls tools but returns errors or unexpected results:

  • Check tool definitions in your Gram toolset—ensure descriptions are clear and accurate.
  • Verify environment variables are set correctly in Gram.
  • Test the tools directly in Gram Playground.
  • Review the trace view in Agent Builder Preview to see exact tool call parameters and responses.
  • Update your agent instructions to be more specific about when and how to use tools.

Authentication errors

If you encounter 401 Unauthorized or 403 Forbidden errors when the workflow calls MCP tools on a public server:

  • Check that your MCP server visibility is set to Public in Gram.

If you encounter 401 Unauthorized or 403 Forbidden errors when the workflow calls MCP tools on an authenticated server:

  • Confirm your Gram API key is valid (check in Gram Settings → API Keys).
  • Ensure you’ve provided the Bearer token in the correct format in the MCP node.
  • Verify that the API key hasn’t expired or been revoked.

Agent not using tools

If the agent responds but never calls your MCP tools.

  • Make the agent instructions more explicit about when to use tools.
  • Verify that the MCP node is properly connected in the workflow.
  • Check that tools are being listed successfully (look for mcp_list_tools in Preview traces).
  • Ensure tool descriptions in Gram are clear and indicate when the tool should be used.
  • Try writing more direct prompts that clearly require tool usage. For example, write “Create a task called X,” instead of “I need to remember to do X.”

What’s next

You now have a complete understanding of how to use OpenAI’s Agent Builder with Gram-hosted MCP servers. You’ve learned to:

  • Create and configure Gram-hosted MCP servers from OpenAPI documents
  • Build visual workflows in Agent Builder using MCP nodes
  • Test and debug workflows with Preview and trace grading
  • Deploy workflows using ChatKit or the Agents SDK

Agent Builder’s visual canvas, combined with Gram’s hosted MCP servers, makes it easy to build production-ready agent workflows that can safely interact with your APIs and services.

Ready to build your own MCP server? Try Gram today  and turn any OpenAPI document into agent-ready tools that work across OpenAI’s AgentKit, Anthropic’s Claude, and other AI platforms.

Learn more about Agent Builder

Last updated on
